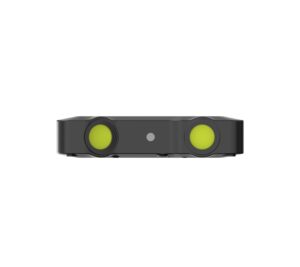

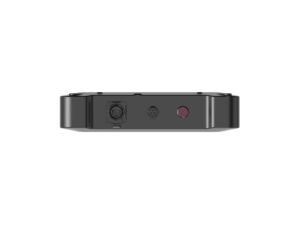

XX3DC021DL40
Obtain Depth and Guide the Robot Arm
Fast and easy to obtain object surface dimensions.
Use 3D Structured Light Camera to guide robot arm.
Core Advantages
Depth Measurement and Vision Guide
< 0.05 mm
High Precision
< 1 s
Fast Execution
IP 65
Industrial Grade
Technical data
Model
XX3DC021DL40
Light
Blue/455 nm
Camera
1.3 / 6.0 Million* 2
Black&White
(monocular)
Resolution
1280×720
X/Y Axis Resolution
0.19 mm/0.08 mm @ 400 mm
Z Axis Resolution
0.05 mm @ 400 mm
Close Projection Size
225×125 mm @ 375 mm
Far Projection Size
276×155 mm @ 460 mm
Input
USB3.0/RJ45
Power Supply
DC 12V
Dimensions
270×165×60.5 mm
IP
IP65
Weight
2.5 kg
