Scan 3D models with precision using industrial 3D scanners and 3D measurement tools. This guide will show you how to apply advanced techniques for 3D scanning reverse engineering.
In the modern fields of industrial design and manufacturing, industrial 3D scanners are essential tools.This is especially true when scanning 3D models like symmetrical objects, where mastering the right scanning techniques is crucial for optimal results.Symmetrical objects often have consistent appearances from multiple angles, making it difficult to align and stitch the 3D scan model accurately due to indistinguishable features. This article focuses on how to use 3D scanners, 3D scanning marker points, and feature objects to achieve efficient and precise reverse engineering.
Choosing the Right 3D Scanner
Selecting the appropriate 3D scanner is key to successfully scanning symmetrical objects. A high-precision scanner with multiple alignment modes is recommended.
Before starting the scanning process, you need to clean the surface of the object to be scanned and ensure a stable scanning environment, including factors like humidity (click here to check the previous article on Blu Tack for more details).
These preparations lay the essential groundwork for ensuring high-quality 3D scanning and reverse engineering results.
The Role of 3D Scanning Marker Points
As a great 3D measurement tool, scanning marker points are indispensable when it comes to 3D scanning reverse engineering. By placing these marker points on the turntable surface, they assist the scanner in alignment and stitching, which is especially important when scanning symmetrical objects. Here’s how to apply marker points effectively:
- Apply the marker points in an asymmetry, irregular pattern across the turntable surface. This helps maintain precise alignment as the object rotates during the scan.
- These markers serve as distinct identifiers, allowing the scanner to differentiate between various positions of the object throughout the scanning process.
- Start with a preliminary scan to check how effectively the scanner detects the markers. If needed, make adjustments. This step is vital for fine-tuning your 3D scanning technique and ensuring the accuracy of the reverse engineering results.
Utilizing Feature Objects for Alignment
If marker points are unavailable, you can use feature objects as a 3D measurement tool to assist with alignment.Placing feature objects on both sides of the symmetrical object increases the diversity of geometric features, making it easier for the scanner to align with the 3D scan model. These feature objects should have distinct geometric characteristics that contrast with the scanned object. Here’s how you can do it:
- Make sure the feature objects remain within the scanner’s field of view during the entire process. This is crucial for helping the scanner accurately position and stitch the3D scan model together.
- Scan from multiple angles, using the feature objects to help align the data and ensure an accurate model. With 3D scanner, a 360° reverse 3D scan model can be completed in 6-8 scans, demonstrating its unique scanning capabilities.
Choosing the Right Alignment Mode
3D scanners come equipped with various alignment modes, such as single-frame Geometric Alignment and Marker Alignment. Selecting the right mode for symmetrical objects is crucial when using a 3D measurement tool for accurate results. Here’s a closer look at the methods:

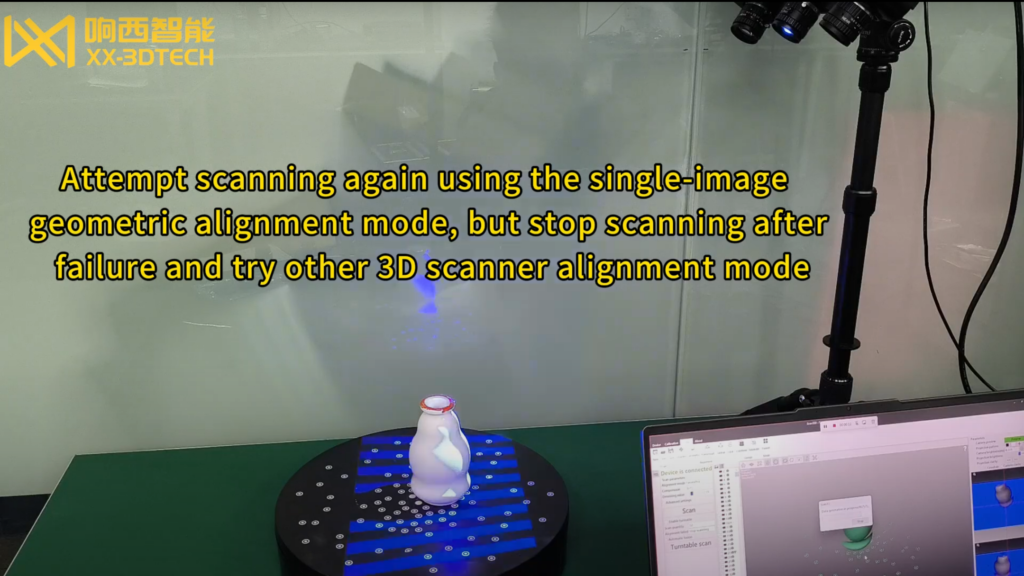

- Geometric AlignmentMode is suitable for your initial scans of simple objects but may be limiting when scanning symmetrical objects. You’ll need to be especially careful when using this method for 3D scan modeling of symmetrical shapes.
- MarkerAlignment Mode is ideal if you’re working with more complex objects, allowing for high-precision scans. This method relies on the 3D scanning marker points to help resolve issues where symmetrical features are difficult to distinguish.
- Feature objectsalignment is the best choice if you want precise alignment for symmetrical objects. By adding feature objects to the scanning process, you’ll provide the scanner with a reliable point of reference, improving the accuracy of your model. Mastering how to choose and switch between these modes is an essential skill for effective 3D scanning.
Data Processing and Model Optimization
Once scanning is complete, data processing and 3D scan model optimization ensure the model’s precision. Using a 3D measurement tool to stitch, denoise, and repair the data is critical for generating high-quality models. Here’s how to process the data:
- Import your scanned dataand check its completeness, setting the stage for the next steps in reverse modeling.
- Use marker points and featureobjects to assist with stitching and alignment, making sure your 3D model is accurate.
- Perform denoising and repair any gapsin the scan to improve the overall quality of the 3D scan model. Fine-tuning the data is a key part of mastering 3D scanning.
Conclusion
Mastering 3D scanning techniques for symmetrical objects can significantly improve scanning efficiency and model accuracy. By making the most of 3D scanners, marker points, feature objects, and various alignment modes, along with professional data processing techniques, you can easily achieve high-precision reverse modeling.
