High-Precision 3D Scanner vs. Vernier Caliper: How to Choose the Right Precision Measurement Tool

Have you ever faced a project where precision was key—whether it’s in industrial inspection, product development, or quality control? You might be wondering which tool best suits your needs: the time-tested vernier caliper or the cutting-edge high-precision 3D scanner. In today’s post, we’ll break down the strengths and limitations of each, so you can decide what fits your workflow perfectly.

3d scanner

The Vernier Caliper: Your Reliable, Cost-Effective Workhorse

You’ve probably used a vernier caliper at some point. It’s a staple in many workshops and labs thanks to its:

  • Affordability and Simplicity:With an impressive precision of up to 0.02mm, it’s perfect for basic measurements like lengths, inner and outer diameters—especially when your budget is tight.
  • Ease of Use:Its straightforward design makes it accessible and easy to operate, making it a frequent go-to tool in many environments.

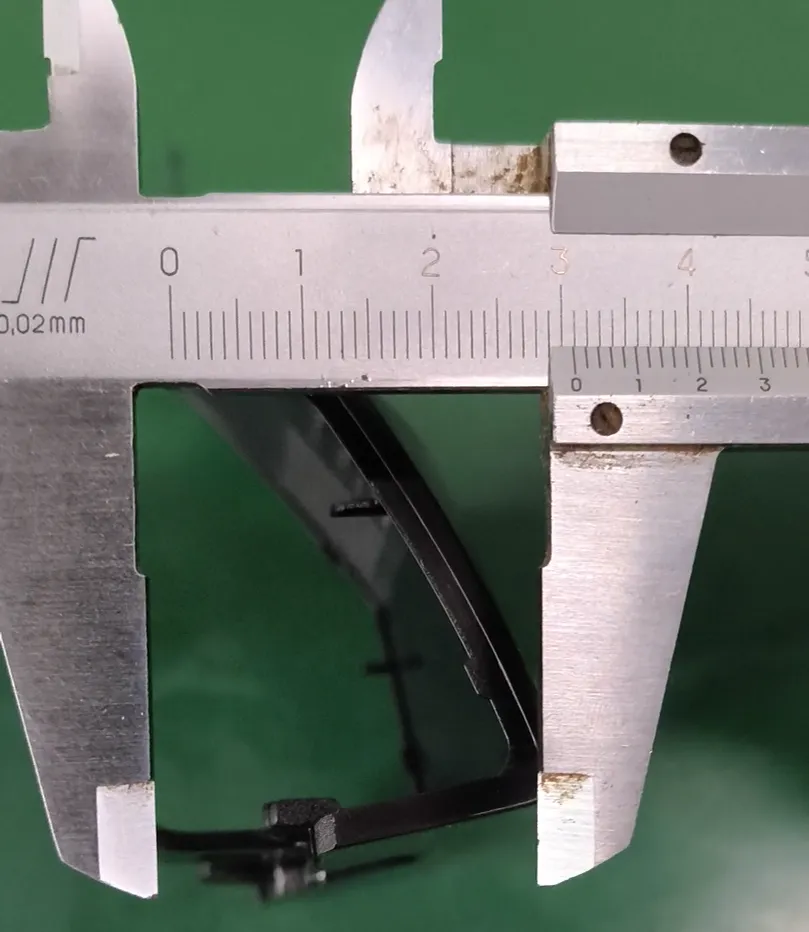

Caliper

However, you might have noticed a few challenges along the way:

  • Contact-Based Limitations:Because it requires physical contact, reaching hidden or curved surfaces can be tricky, potentially leading to inaccuracies.
  • Inefficiency in Complex Tasks:Measuring multiple dimensions often means repeated manual operations, which can slow you down and increase the chance of errors.
  • Data Limitations:While it gives you numerical data, it doesn’t create a digital 3D model that can be used for further analysis or reverse engineering.

The 3D Scanner: Revolutionizing Precision Measurement Tool

Imagine capturing every dimension of a complex object in just seconds—sounds like a game changer, right? With a high-precision 3D scanner, you get:

  • Non-Contact Reverse Engineering: This means you can measure intricate details without ever touching the object. Whether it’s the fine pitch of a gear or the delicate curves of a sculpture, the 3D scanner captures it all with precision.
  • Comprehensive Data Capture:A single scan can gather every dimension of your object, generating a full 3D model that’s perfect for reverse engineering, simulation analysis, or quality control.
  • Efficiency for Complex Tasks:Especially when dealing with bulk measurements or intricate designs, the 3D scanner boosts your efficiency—often cutting measurement cycles by more than 10 times.

Case study: After introducing Xiangxi equipment, an automotive parts manufacturer reduced the mold inspection cycle from 3 days to 2 hours. Additionally, the 3D model was directly used for production line debugging, resulting in a 40% increase in R&D efficiency.

Of course, there are some things to consider:

  • Higher Investment:These 3D scanners come with a steeper price tag—ranging from tens of thousands to even hundreds of thousands of dollars. Plus, you might need additional high-performance hardware and specialized software.
  • Learning Curve and Environmental Factors:You’ll need to familiarize yourself with techniques like point cloud stitching and noise filtering. Sometimes, you might also have to apply a temporary coating on reflective or transparent surfaces to get the best results.

Finding the Right Balance for Your Needs

So, which tool is right for you? If you’re handling straightforward measurements on a tight budget, the vernier caliper is a practical choice. However, if your projects demand intricate measurements, detailed reverse engineering, or if you simply want to save time and boost productivity, a high-precision 3D scanner is worth every penny—even considering the initial learning curve and higher investment.

Ready to Upgrade Your Measurement Game?

We invite you to explore more about our innovative solutions by visiting our official website and following us on our social platforms. If you’re interested in how our high-precision 3D scanners can be a precision measurement tool and revolutionize your reverse engineering process, don’t hesitate to contact us. Let’s take your precision measurement tool and make your reverse engineering skill to the next level together!
